Features
● High accuracy
● No mechanical and movable parts, little repair work
● Span and zero continuous and adjustable from outside
● Good stability
● Positive shift amount to 500%; negative shift 600%

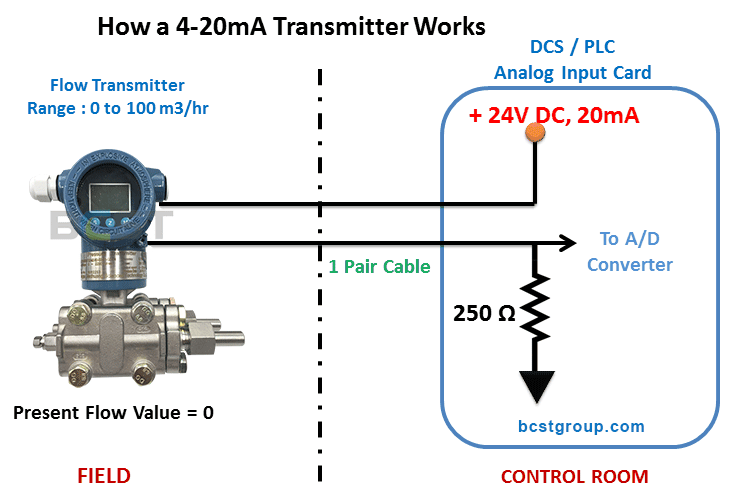

● Two-wire system 4~
20mA DC
● Damping adjustable, overpressure protection
● Solid components, patch-type printed circuit board
● Explosion-proof structure, all-day use
● Unified structure, strong interchangeability of parts
●
Miniaturization（total height
166mm）
● Diaphragm materials of contacting mediums option (
316L, TAN, HAS-C,
MONEL, etc.)
● smart HART protocol
Function Parameters
● Service: liquid, gas and steam
● Measuring range : 0~0.06
kPa to 0~
40Mpa
● Output signal : 4~
20mA DC (four-wire
220V AC power supply, 0~
10mA DC output for special)
● Power supply : 12~
45V DC, generally
24V DC
● Features of loading: relation equation of loading impedance
RL and power voltage
Vs:
RL <= 50(Vs-12)
● Indicator : pointer-type linearity indication 0~100% scale mark or LCD indicator, LED indicator.
● Explosion proof : a. explosion isolation d II
CT6
b. intrinsically safe
ia II
CT6
● Positive and negative shifts : after positive and negative shifts of zero absolute values of upper-and-lower-limit values of span and measuring range not exceed 100% of upper limit of measuring range.
( smart type : turn down ratio 20:1, 40:1) Maximum positive shift is 500% of minimum adjusting span;
maximum negative shift is 600% of minimum adjusting span.
● Temperature range: amplifier operation temperature range: -29 ~ +
93C
(LT type: -25 ~ +
70C); measuring component of fill silicone oil: -40 ~ +
104C
flange type transmitter fill hi-temperature silicone oil: -20 ~ +
315C normal silicone oil: -40 ~ +
149C
● Static pressure : 4, 10, 25,
32Mpa
● Humidity : relative humidity 0~100%
● Volume absorption : < 0.16cm3
● Damping (phase step response) : For silicone oil, generally between 0.2s and1.67s, continuous and adjustable
Technical Datas
(no shift, under standard operation conditions, fill silicone oil, 316 SS diaphragm)
● Accuracy class: +/-0.25%, +/-0.5% (smart type: +/-0.1%, +/-0.075%)
● Dead zone: no (<=0.1%)
● Stability : within 6 months not beyond absolute value of basic error of maximum span
● Vibration effect: on a random ax upward, at vibration frequency of 200 Hz, error +/-5%/g of upper limit
of measuring range.
● Power effect : < 0.005%/V of output span
● Loading effect : no effect from loading at stable power
● Effect of installation position : at most 0.24kPa of zero error, no effect on span
Others
● Diaphragm: 316 SS, HC -276,
Monel or Ta
● Exhaust/vent Valve: 316 SS, HC or
Monel
● Flange and Connector: 316 SS, HC or
Monel
● Contacting medium “O” ring:
acrylotrile-butadiene rubber, fluorine rubber
● Fill liquid: silicone oil or inert oil
● Blot: 316 SS
● Electronic Body Material: low copper-aluminum alloy
● Ignition Voltage Connection Fit : flange NPT 1/4, center distance
54mm; connector NPT 1/2 or
M20 ×1.5 male
round-cone surface sealed, when carrying connector the center distance 50.8, 54, 57.2mm (NPT taper thread
accords with GB/
T12716-91)
● Signal line connecting hole : G 1/2"
● Weight : 4.2 kg (standard type)
