JC1101 Digital Output Silicon Differential Pressure Sensor
JC1101 Digital Output Silicon Differential Pressure Sensor

JC1101 Digital Output Differential Pressure Sensor

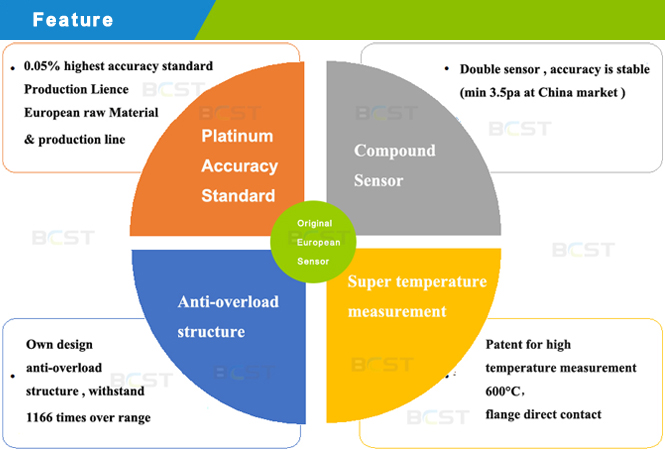

Technical Advantages

The high stability silicon sensor , highest accuracy be 0.05%
Highest pressure up to 40Mpa
Temperature compensation:-25 to 65 °C
The Staic error <0.1%/10Mpa
Stainless steel 316L and silicone oil filling welded seal structure

Applications
Differential pressure (flow) transmitter core components
